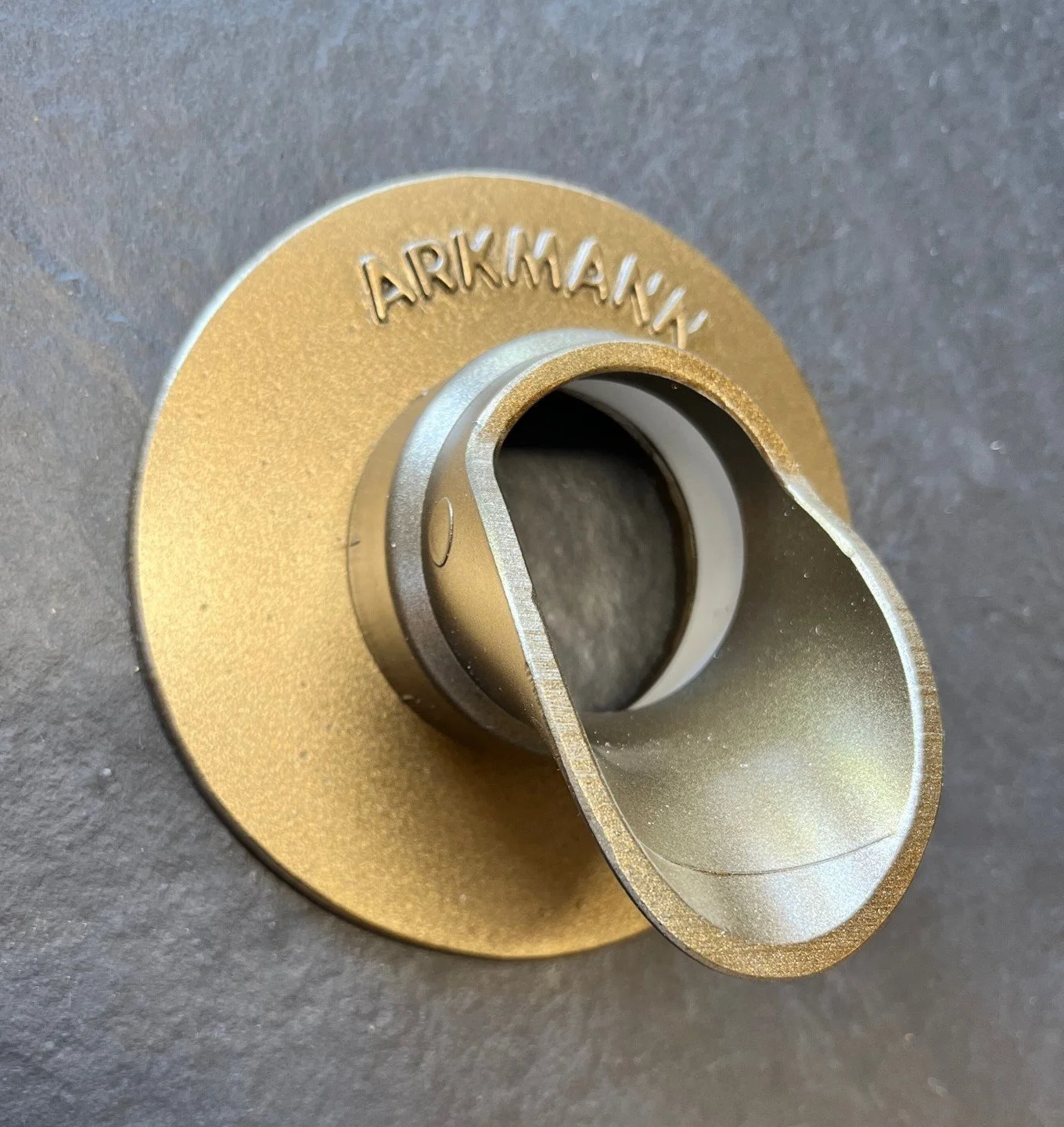

The ARKMANN Plastic Downspout Nozzle is a low-cost alternative for new construction and a labor-saving replacement for damaged or stolen nozzles. Used at the base of a wall where a concealed leader discharges rainwater to the ground, the nozzle design diverts water away from the building, eliminating wall stains.
Nozzles are ornamental, generally with no code requirements.
The wall flange fits over the body both in front and behind the hub, over the pipe. It installs directly onto PVC solid or foam core DWV pipe and allows one-step gluing, thus eliminating threaded adaptors and possible leaks.
Manufactured locally in SLC, UTAH USA
Nozzle Features
All PVC body with Polyurethane flange
Solvent weld hub inlet or threaded hub 2"- 8."
Larger sizes available upon request

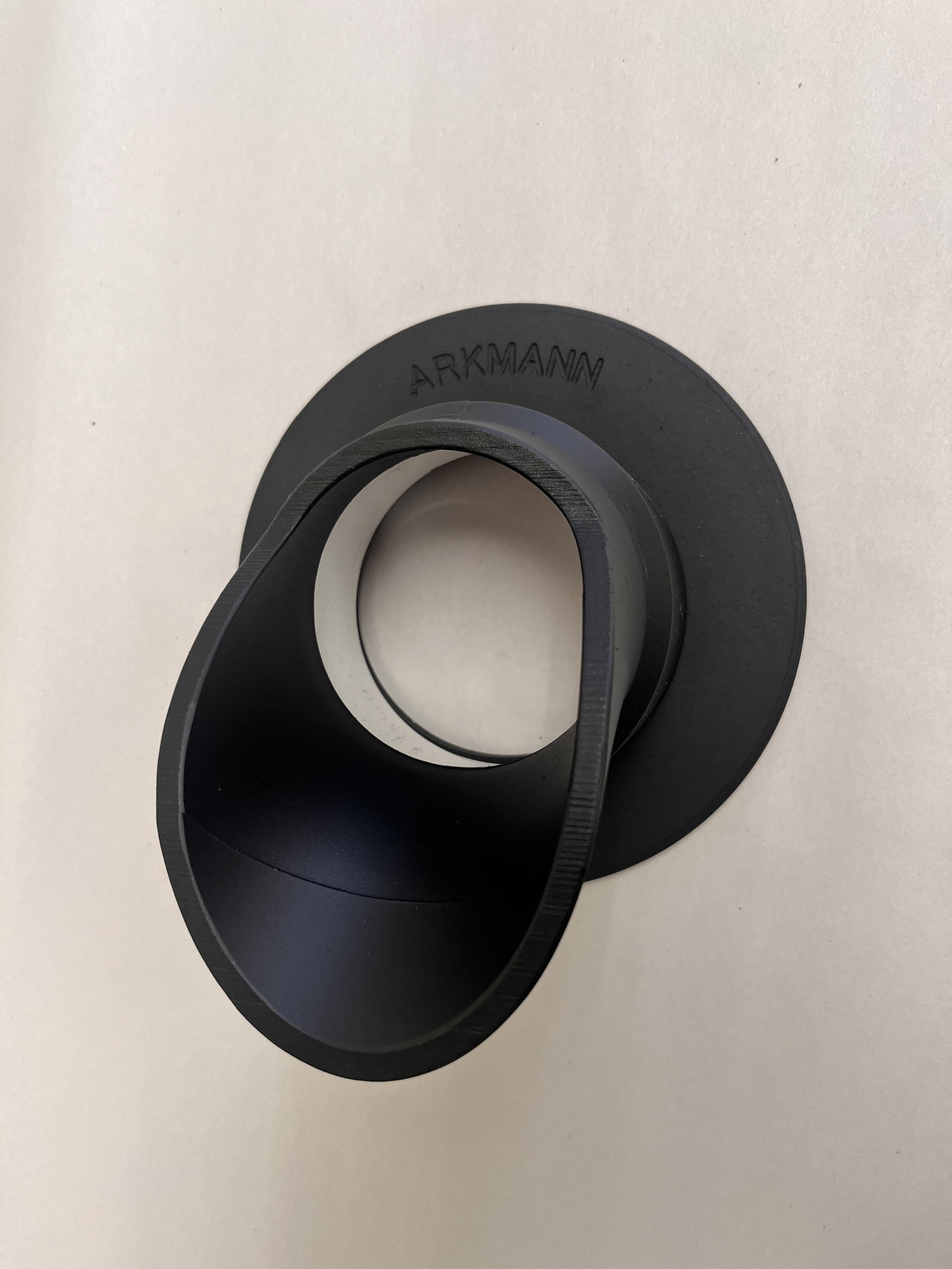

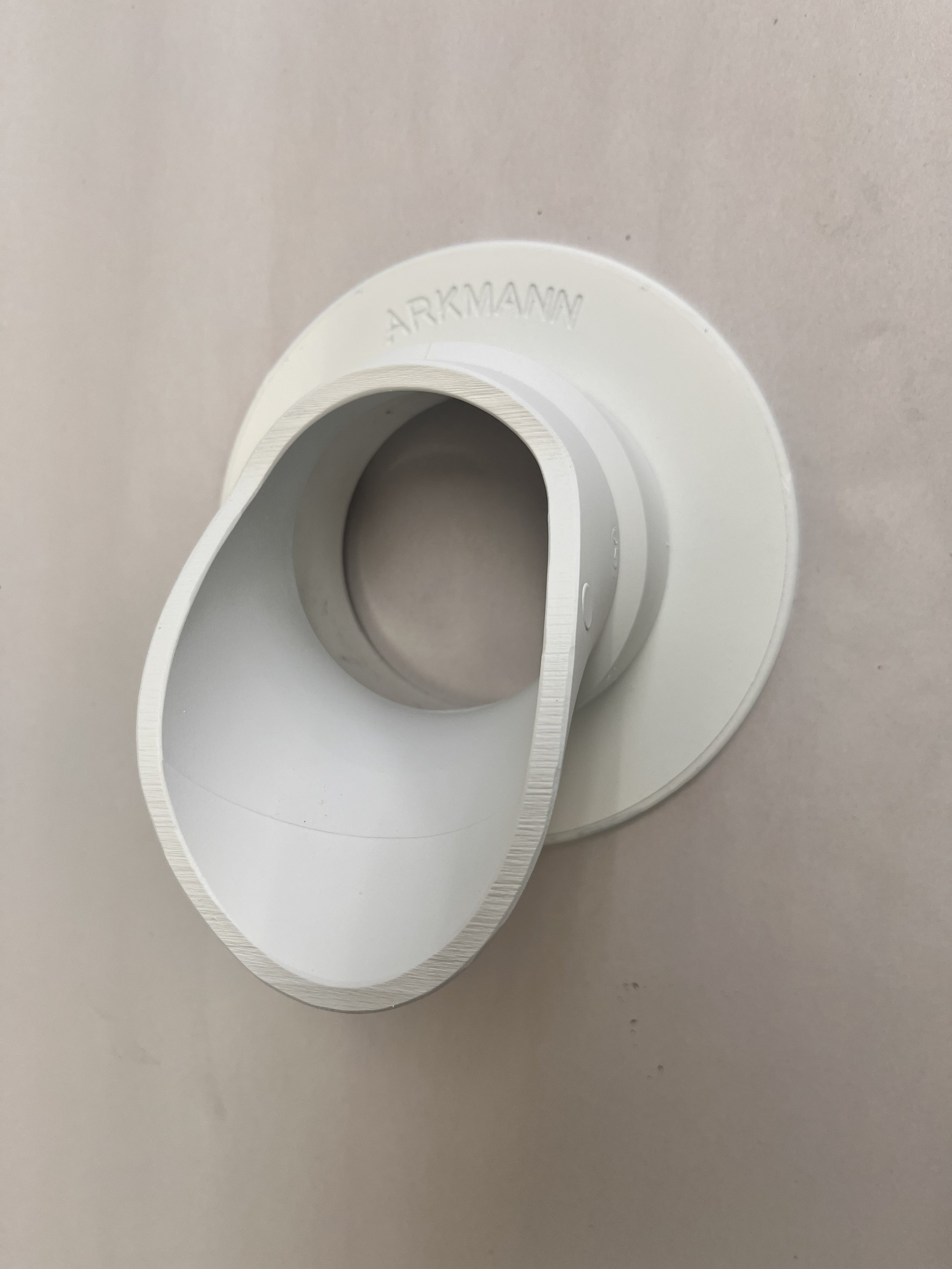

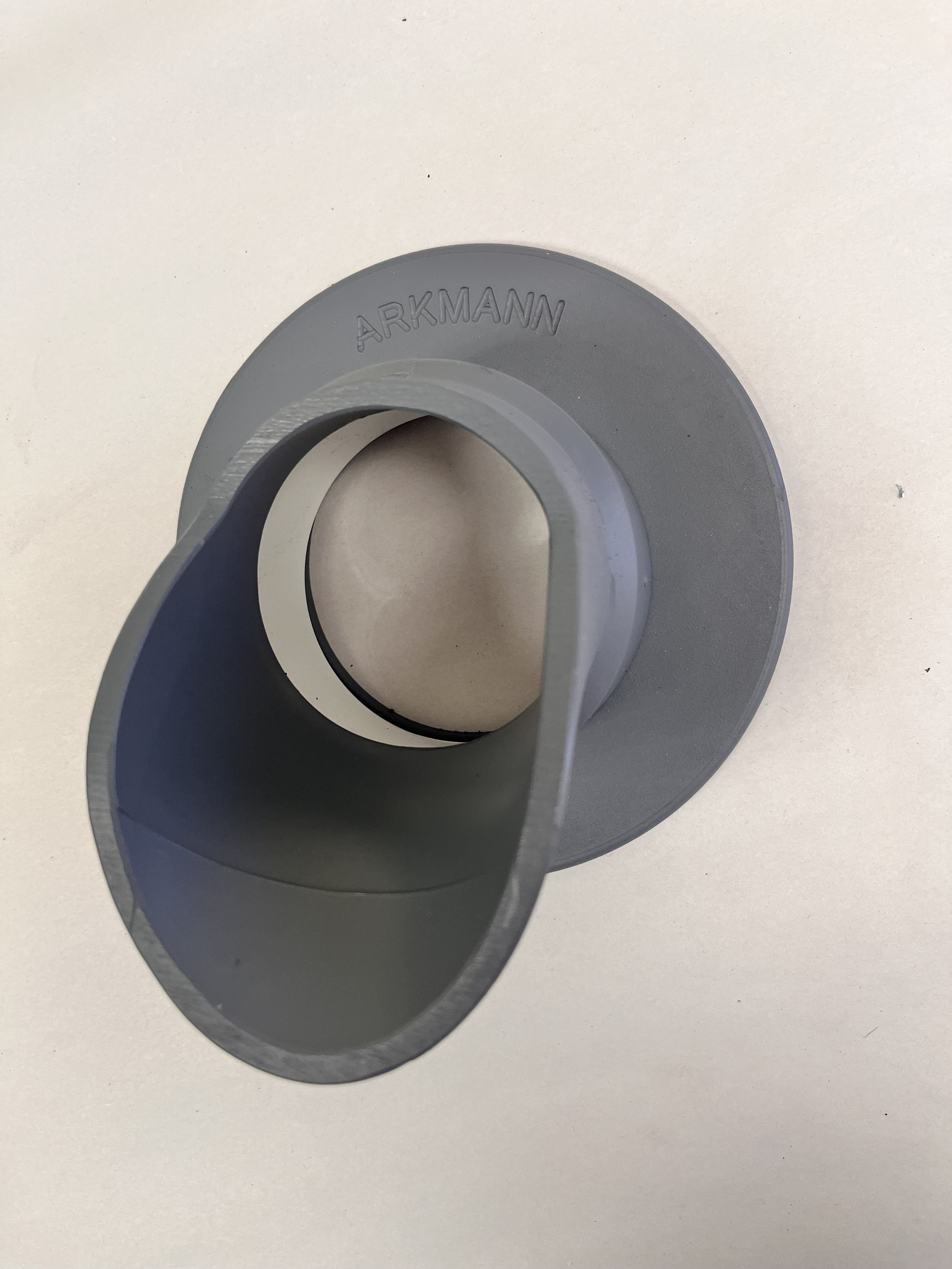

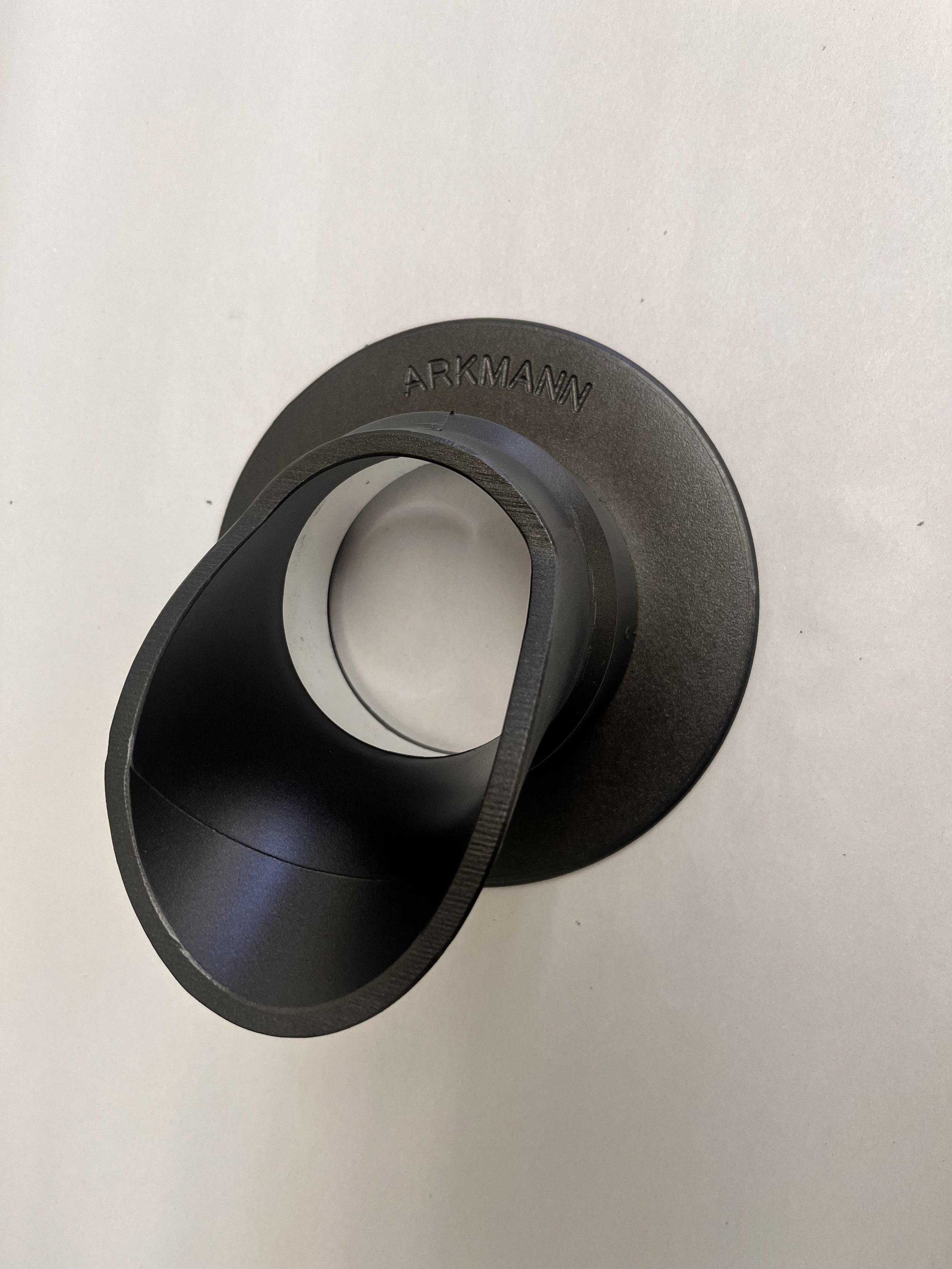

Enamel finish - Primer Gray, Primer Black, Primer White.

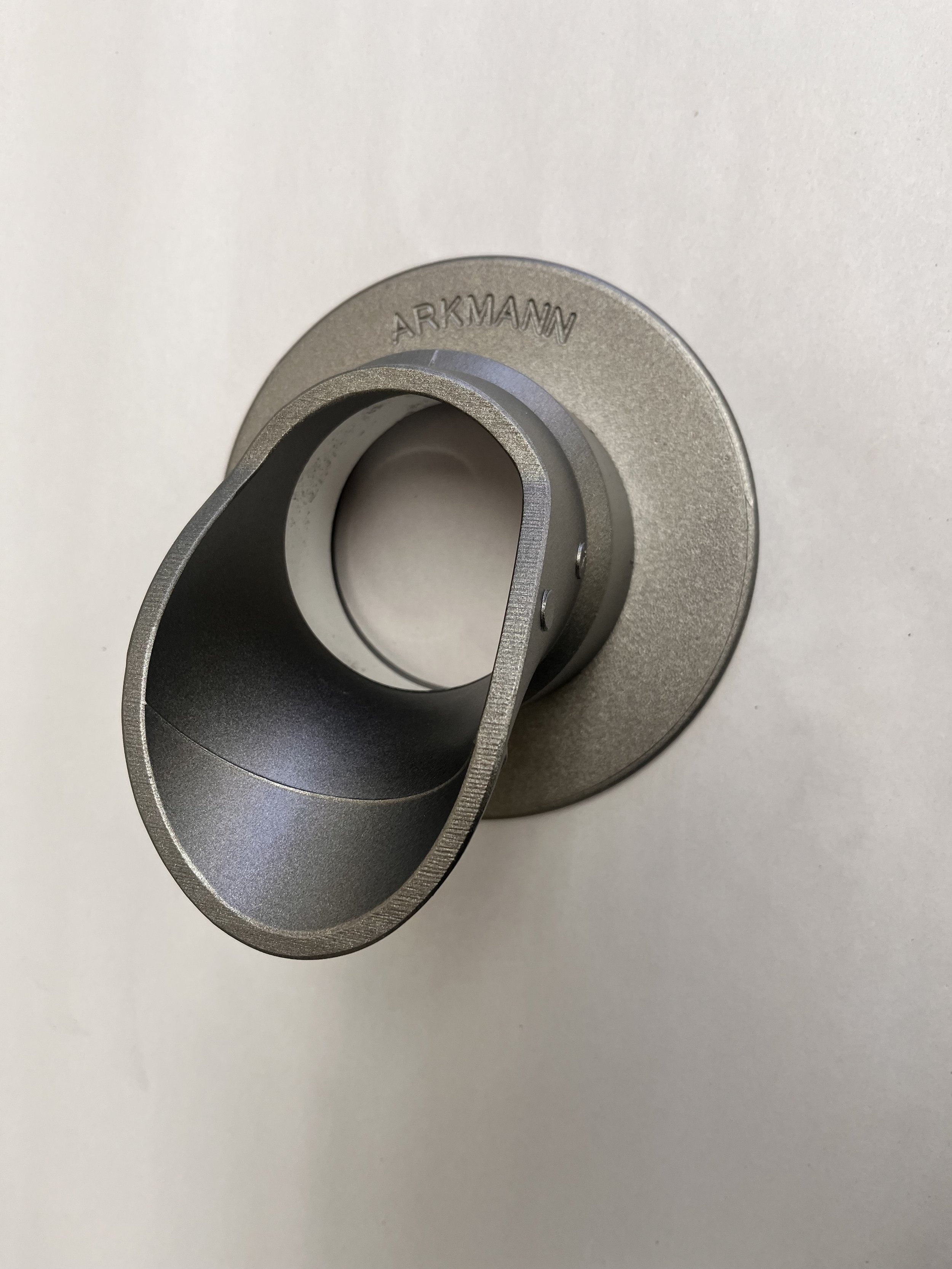

Color & Threading Customization

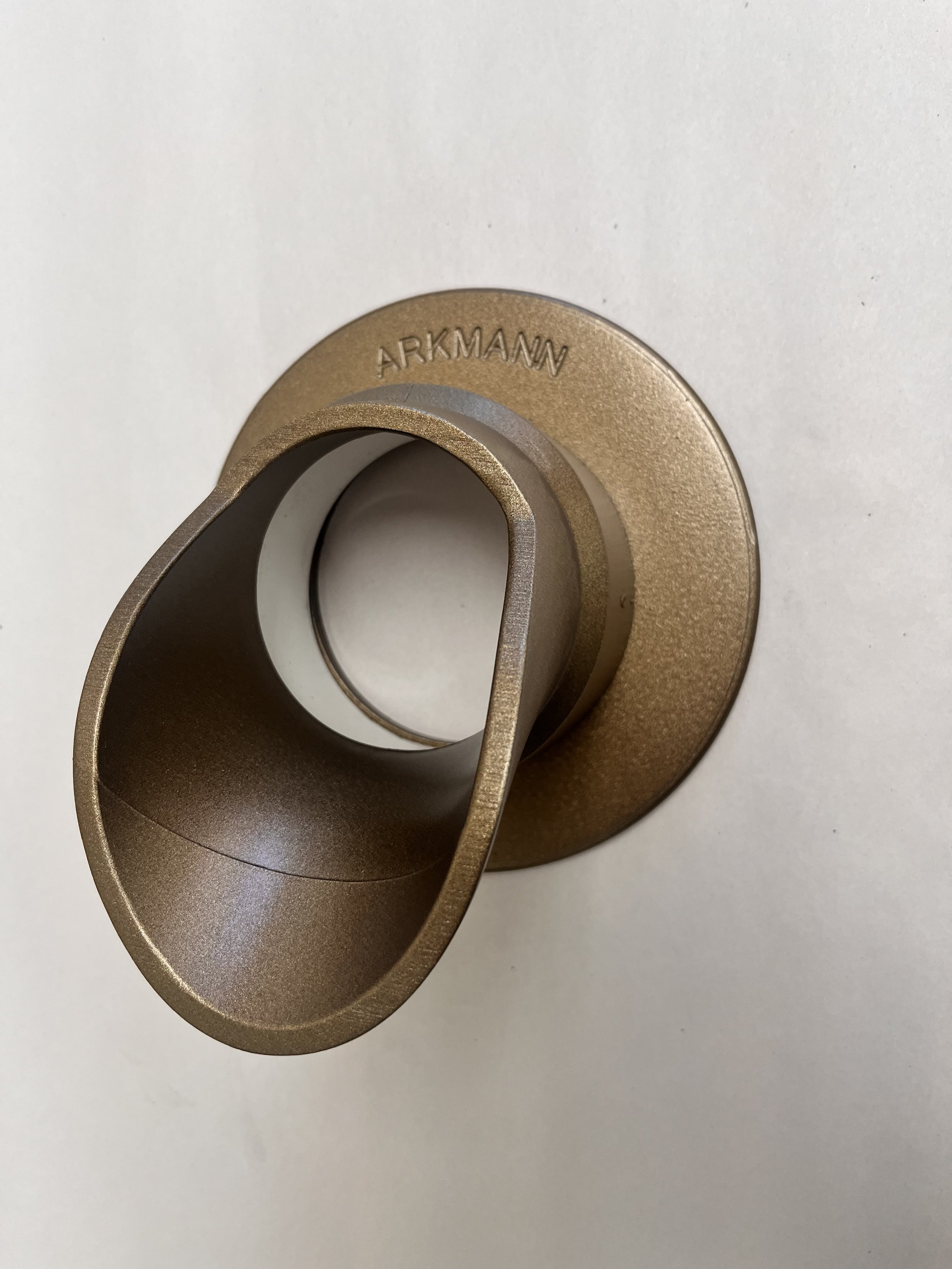

Bronze Metallic

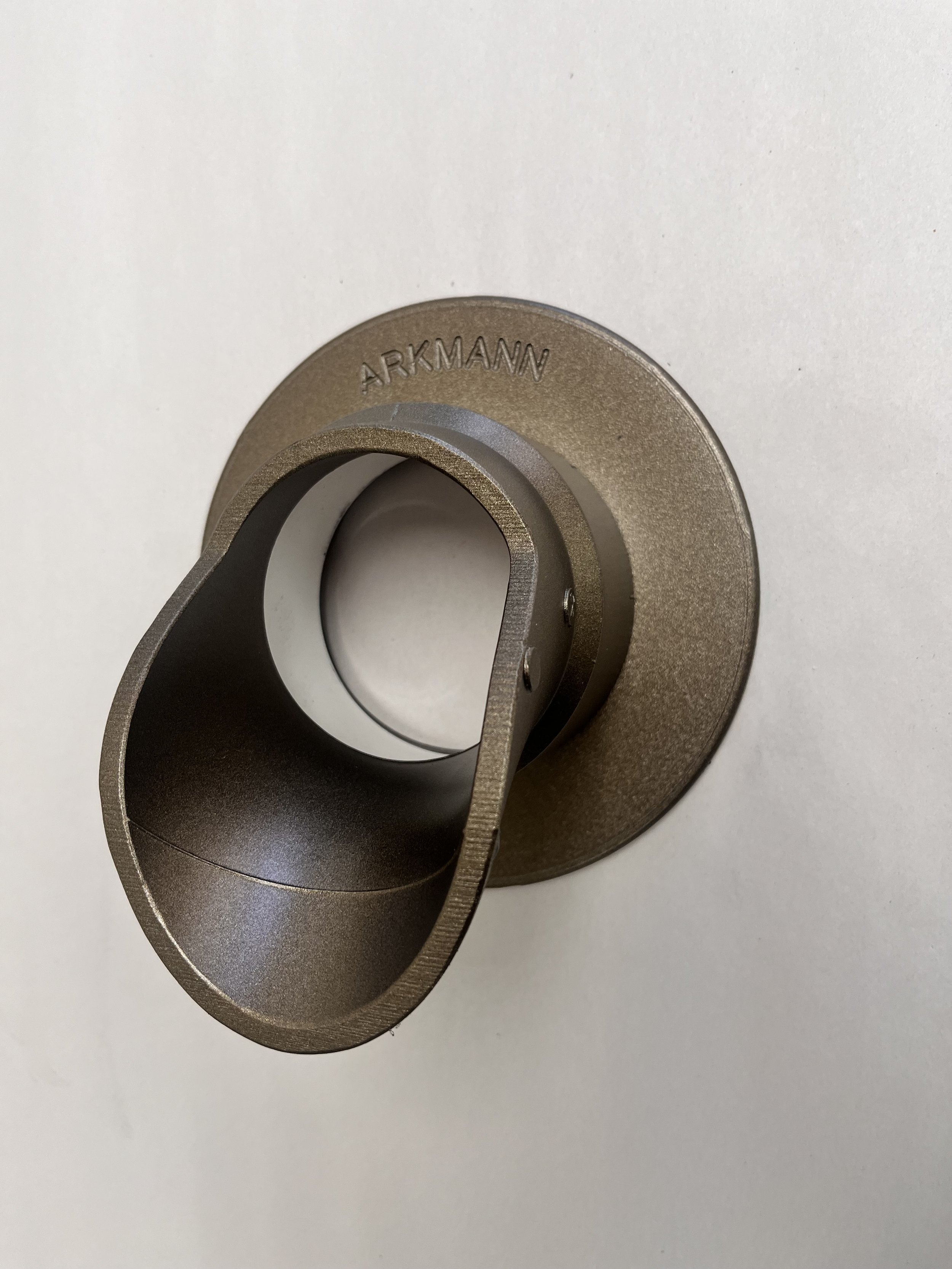

Anodized Bronze

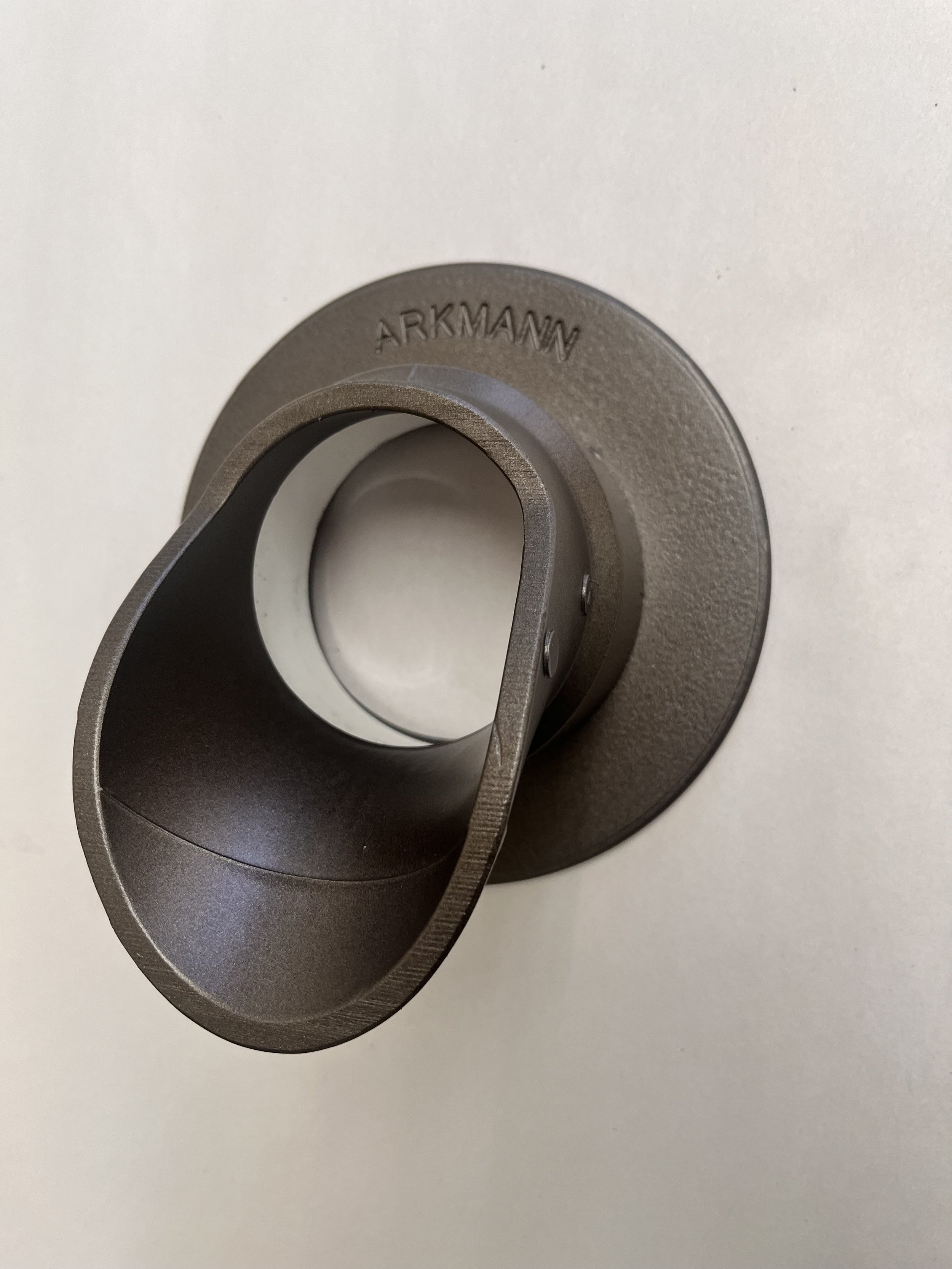

Dark Bronze
Color by customer request
Threaded option available on 2”-4” upon request
